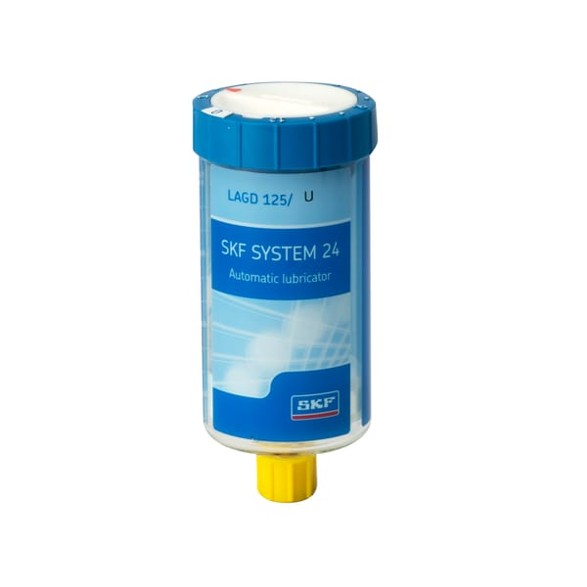

LAGD 125/U
SKF SYSTEM 24, gas driven single point automatic lubricator, 125 ml, empty

The SKF SYSTEM 24 LAGD 125/U is provided empty and recommended for oil filling. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

Flexible dispense rate from 1 to 12 months
ATEX zone 0 approved
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance

Tootekood: LAGD 125/U Kategooria: Määrdeained ja määrimislahendused Bränd: SKF

Kirjeldus

Kirjeldus

Dimensions

Dimensions (W x L x H)	54 x 54 x 121 mm
Outer diameter	54 mm
Height (H)	121 mm

Performance

Maximum pressure

5 bar

Properties

Lubricator capacity	125 ml
Nominal emptying time	Adjustable, 1–12 months
Recommended storage temperature	20 °C
Recommended applications	Empty lubricator for oil filling
Series	LAGD
Version	Lubricator
Type	Lubricator (LAGD)
Drive mechanism	Gas cell producing inert gas
Lubricant volume	125 ml
Lubricant operating temperature range	–
Nominal emptying time	–
Dispense rate range	–
Power source	Integrated gascell
Special features	Non-return valve included
Degree of protection (IP)	IP 68
Maximum feed line length	1.5 m
Connecting thread	R 1/4
Shelf life	2 year
Intrinsically safe approval	II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Ambient temperature range	-20 – 60 °C
Recommended storage temperature	5 – 25 °C
Relative humidity	0 to 90%, non-condensing
Product lifecycle type	Disposable
Mounting orientation	Any, head up preferred
