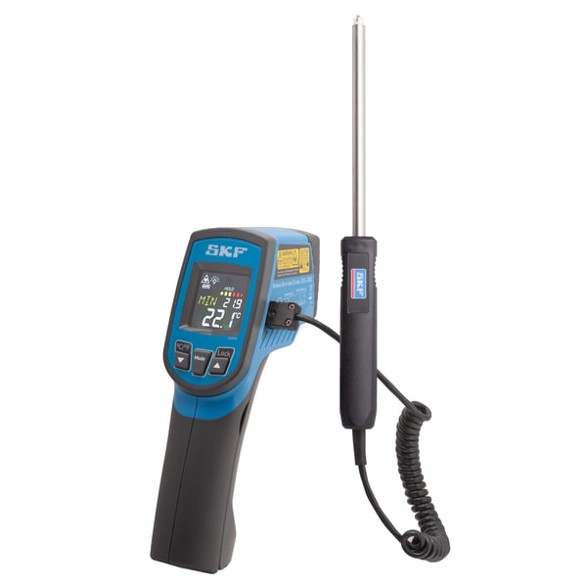

TKTL 21
Advanced infrared thermometer with adjustable emissivity with contact probe

SKF offers a wide range of portable, lightweight and easy-to-use infrared thermometers for thermal inspections. These portable tools help you to detect temperature differences in technical and non-technical applications, this in order to perceive information on abnormalities in operating. SKF Infrared thermometers are fitted with multiple lasers which helps you to easy and more accurate target the object.

  • LCD colour display8 laser targetingType-K thermocouple probeAdjustable emissivityHigh accuracyFast response timeDS ratio of 30:1
Tootekood: TKTL 21 Kategooria: Bränd:

Kirjeldus

Dimensions

Instrument dimensions 119 x 172 x 48 mm
Case dimensions (l x h x w) 530 x 85 x 180 mm

Performance

Temperature range using infrared -60  –  760 °C
Temperature range using probe -64  –  1400 °C
Distance to spot ratio 30:1

Properties

Recommended applications Used in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding
Probe K type probe, TMDT 2-30 included (max. 900 °C)
Emissivity 0.1  –  1
Display LCD Color with LED backlighting
Response time 1 000 ms
Resolution
0.1 °C/F (below 999.9)
1 °C/F (above 1000)
Spectral response 8  –  14 µm
Measurement modes
Maximum
Minimum
Average
Difference (between min and max)
Probe/IR dual temperature
Alarms High and low level alarm with warning sound
Laser type 8 x red targeting laser dots
Laser wavelength 635 nm
Laser power max 1 mW
Auto switch off Automatic, 60 seconds after trigger release in IR mode and 12 minutes after trigger release in probe mode
Tripod connector Yes, (1/4-20 UNC)
Housing material PC/ABS blend
Colour
Blue
Dark grey
Battery 2x AAA (Alkaline (incl.) or Rechargable)
Battery life 3 h
Power adapter No
Instrument weight 260 g
Degree of protection (IP) IP 30
Operating temperature range 0  –  50 °C
Recommended storage temperature -10  –  60 °C
Relative humidity 10 to 95%, non-condensing
Content
1x IR thermometer (TKTL 21)
1x Temperature probe (TMDT 2-30)
2x AAA Alkaline batteries
1x instructions for use (MP5494)
1x carrying case (size X)
