SYNT 65 L

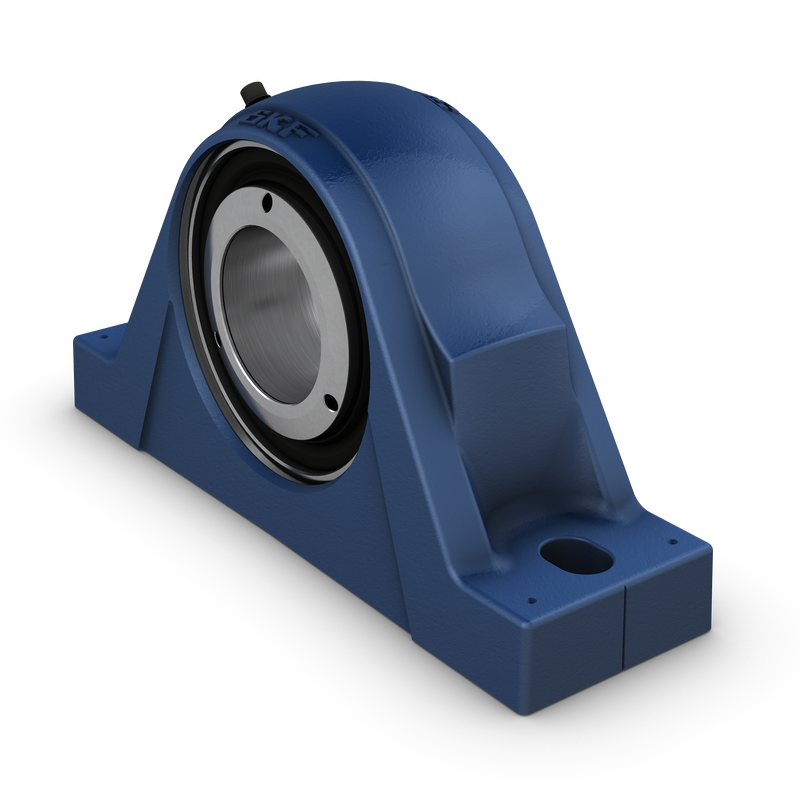

Pillow block roller bearing unit, metric series

Roller bearing units are robust, ready-to-mount units that are lubricated and sealed at the factory for maximum service life. Pillow (plummer) block units can support rotating shafts while standing on a flat surface, or hanging on a wall or ceiling. The SKF ConCentra locking combines easy mounting and a concentric tight fit on the shaft for high speeds and low vibration.

  • Factory lubricated and sealed, ready to mount
  • Long service life with minimal or no maintenance
  • Quick mounting on the support surface, quick locking on the shaft
  • True concentric fit on the shaft for high speeds and low vibration
Tootekood: SYNT 65 L Kategooriad: , Bränd:

Kirjeldus

Dimensions

Shaft diameter 65 mm
Centre height (pillow block) 80 mm
Housing overall width 80 mm
Centre distance between bolt holes 230 mm
Attachment bolt diameter 16 mm
Bearing width, total 72 mm

Performance

Basic dynamic load rating 193 kN
Basic static load rating 216 kN
Limiting speed 2 700 r/min

Properties

Housing type Pillow block
Number of bolt holes for fasteners 2
Bearing insert Spherical roller bearing
Retaining feature, inner ring SKF ConCentra
Bearing position Non-locating
Bore type Cylindrical
Material, housing Cast iron
Material, bearing Bearing steel
Coating Without
Bearing housing seal type Radial lip seal
Sealing, unit Optional end cover
Lubricant Grease
Relubrication hole With
Grease fitting With
