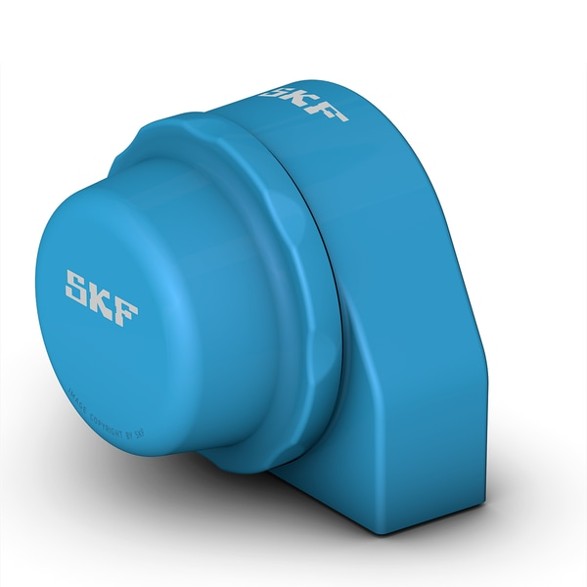

P2BTC 30M-CPSS-DFH PUKKLAAGER d-30MM KOMPOSIIT + SS Y-LAAGER + PÕHJATIHEND + UMBNE KAAS SKF FOOD LINE

P2BTC 30M-CPSS-DFH PUKKLAAGER d-30MM KOMPOSIIT + SS Y-LAAGER + PÕHJATIHEND + UMBNE KAAS SKF FOOD LINE
P2BTC 30M-CPSS-DFH PUKKLAAGER d-30MM KOMPOSIIT + SS Y-LAAGER + PÕHJATIHEND + UMBNE KAAS SKF FOOD LINE - Pilt 2
P2BTC 30M-CPSS-DFH PUKKLAAGER d-30MM KOMPOSIIT + SS Y-LAAGER + PÕHJATIHEND + UMBNE KAAS SKF FOOD LINE - Pilt 3

165,48 € (sis. KM)

Laost otsas

P2BTC 30M-CPSS-DFH

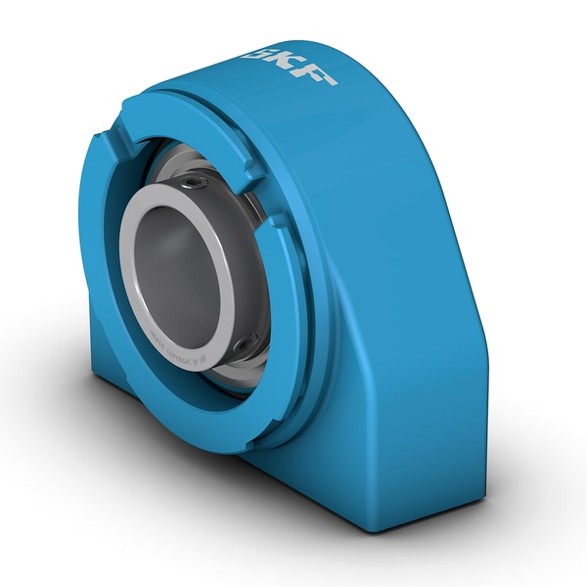

Short base pillow block ball bearing unit with narrow inner ring and set screw locking, composite

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. It has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has a narrow inner ring and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Excellent corrosion resistance
  • Lightweight
  • Recyclable
Tootekood: P2BTC 30M-CPSS-DFH Kategooriad: , Bränd:

Kirjeldus

Dimensions

Shaft diameter 30 mm
Centre height (pillow block) 42.9 mm
Housing overall width 30 mm
Centre distance between bolt holes 76 mm
Bearing width, total 31.2 mm

Performance

Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 700 r/min

Properties

Housing type Pillow block, short base
Number of bolt holes for fasteners 2
Fastening bolt hole type Threaded
Retaining feature, inner ring Set screws
Bore type Cylindrical
Rubber seating ring Without
Material, housing Composite for the SKF Food Line
Material, bearing Stainless steel
Coating Without
Sealing, bearing Seal on both sides and flinger on one side
Sealing type Contact, gutter
Sealing, unit End cover and back seal
Lubricant Grease
Relubrication hole Without
Grease fitting Without
Unit system Metric
