HAMMASRIHM HTD 186 3M L-6MM Z-62 STRONGBELT MOTUS

Kirjeldus

186-3M-6

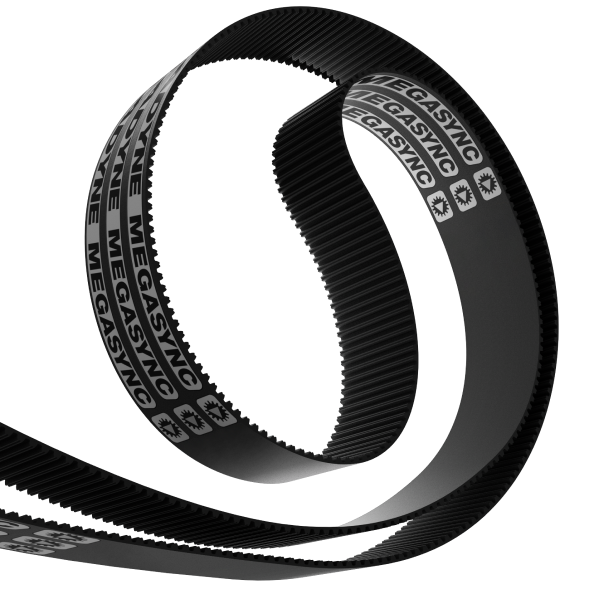

HiTD belt
Belts provide a very efficient and cost-effective method for transmitting power from prime movers to driven machines. High torque drive (HiTD) timing belts have teeth that interlock with the corresponding grooves on the pulleys to ensure a constant speed ratio. The low stretch glass fibre cords guarantee excellent dimensional stability. The oil and heat resistant neoprene rubber cushion provides high shear resistance.
Synchronous operation with no slippage
Excellent dimensional stability
Oil, heat and ozone resistant
Suitable for tropical climates
Reduced energy consumption and increased mean time between failures

DIMENSIONS
Pitch length 186 mm
Tooth depth 1.2 mm
Tooth height 2.4 mm
Tooth pitch 3 mm
Width 6 mm

PROPERTIES
Number of teeth 62
Section 3M
Sleeve No
