4,98 € (sis. KM)
20 laos (Laki 26)
SKF Energy Efficient (E2) radiaalkuullaagrid
SKF E2 radiaalkuullaagrid tagavad rohkem kui kahekordse kasutusea, vähendades samal ajal

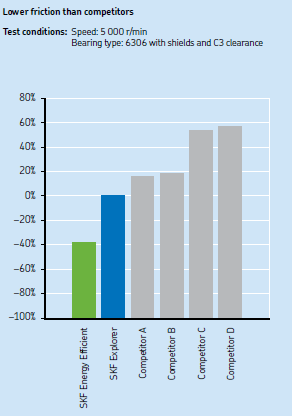

energiakulu. Konstruktsiooni täiustused vähendavad laagrite hõõrdekadusid vähemalt 30% võrra
võrreldes sama suure SKF Explorer seeria laagriga. Selle tulemuseks on energiasääst.
Kirjeldus
Kataloog: E2-DGBB-brochure_pdf
E2.629-2Z/C3
Deep groove ball bearing with seals or shields
Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Dimensions
| Bore diameter | 9 mm |
| Outside diameter | 26 mm |
| Width | 8 mm |
Performance
| Basic dynamic load rating | 4.62 kN |
| Basic static load rating | 1.93 kN |
| Reference speed | 60 000 r/min |
| Limiting speed | 36 000 r/min |
Properties
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Matched arrangement | No |
| Radial internal clearance | C3 |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Shield on both sides |
| Sealing type | Non-contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Indicative carbon footprint for new product | 0.07 kg CO2e |
Lisainfo
| Sisemõõt | 9 |
|---|---|
| Välismõõt | 26 |
| Paksus | 8 |
