E2.6003-2RSH/C3

Deep groove ball bearing with seals

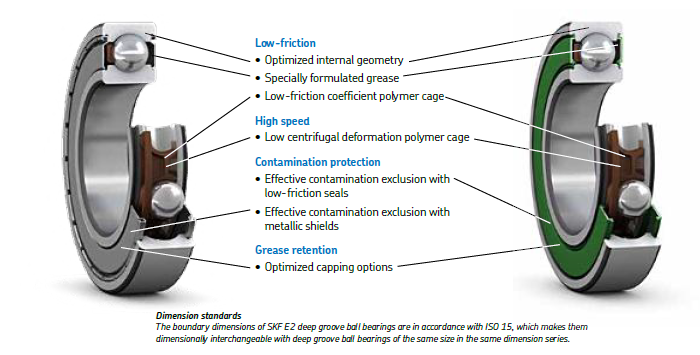

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Tootekood: E2.6003-2RSH/C3 Kategooriad: , Bränd:

Kirjeldus

Product information
Bore diameter 17 mm
Outside diameter 35 mm
Width 10 mm
Basic dynamic load rating 5.85 kN
Basic static load rating 3 kN
Limiting speed 13000 r/min
Filling slots Without
Number of rows 1
Locating feature, bearing outer ring Without
Bore type Cylindrical
Cage Non-metallic
Matched arrangement No
Radial internal clearance C3
Material, bearing Bearing steel
Coating Without
Sealing Seal on both sides
Sealing type Contact
Lubricant Grease
Relubrication feature Without
Indicative carbon footprint for new product 0.14 kg CO2e

Lisainfo

Sisemõõt

17

Välismõõt

35

Paksus

10
