71910 ACD/P4ADGA TÄPPISLAAGRI PAAR SKF

71910 ACD/P4ADGA TÄPPISLAAGRI PAAR SKF
71910 ACD/P4ADGA TÄPPISLAAGRI PAAR SKF - Pilt 2

400,77 € (sis. KM)

6 laos (Laki 26)

71910 ACD/P4ADGA

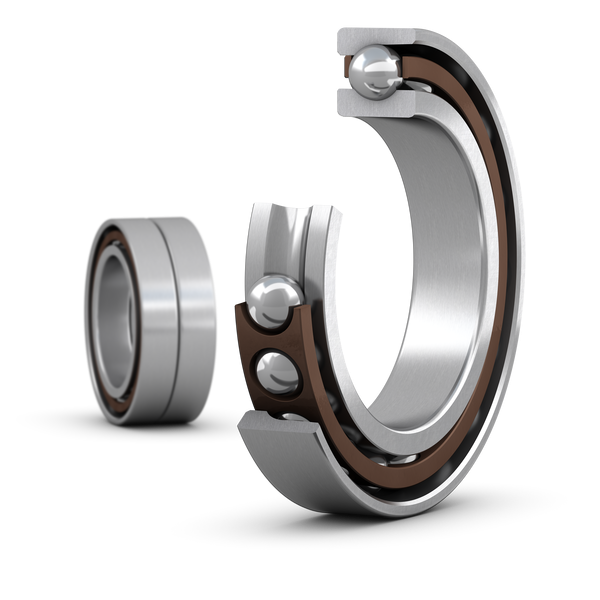

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

  • Very high running accuracy
  • Very high load carrying capacity
Tootekood: 71910 ACD/P4ADGA Kategooriad: , Bränd:

Kirjeldus

Dimensions

Bore diameter 50 mm
Outside diameter 72 mm
Width 24 mm
Contact angle 25 °

Performance

Basic dynamic load rating 20.8 kN
Basic static load rating 19.6 kN
Note Refer to catalogue data or contact SKF for the attainable speeds

Properties

Contact type Normal contact (two-point contact)
Number of rows 2
Ring type One-piece inner and outer rings
Design High-capacity D
Universal matching bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Matched arrangement Universal matching
Number of bearings in matched set 2
Matched condition (axial clearance/ preload) Extra light preload
Tolerance class P4A
Material, bearing Bearing steel
Coating Without
Sealing Without
Lubricant None
Indicative carbon footprint for new product 0.98 kg CO2e
