Y-LAAGER d-25MM YAR 205-2LPW/ZM SKF

Kirjeldus

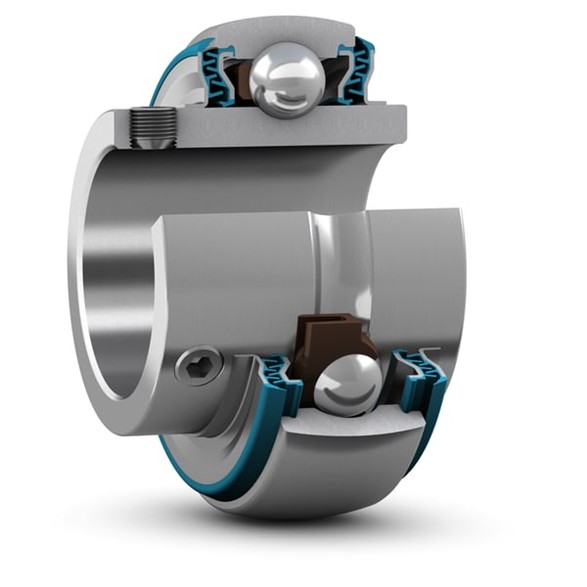

YAR 205-2LPW/ZM

Insert bearing with set screw locking and extended inner ring
Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Dimensions
Shaft diameter 25 mm
Bore diameter 25 mm
Outside diameter 52 mm
Width, total 34.1 mm
Width, inner ring 34.1 mm
Width, outer ring 15 mm

Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 4300 r/min
Note Limiting speed with shaft tolerance h6

Properties
Retaining feature, inner ring Set screws
Bore type Cylindrical
Rolling elements Balls
Outer ring type Spherical
Inner ring extension On both sides
Cage Non-metallic
Rubber seating ring Without
Material, bearing Bearing steel
Coating Zinc-coated rings
Sealing Seal and flinger on both sides
Sealing type Contact, gutter
Lubricant Grease
Relubrication feature Without
