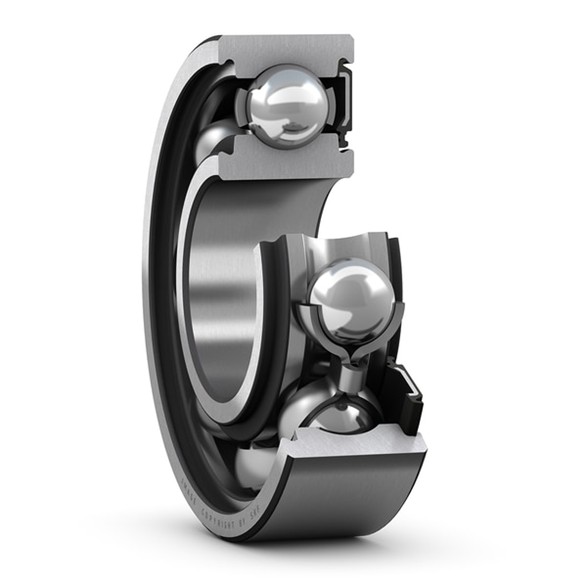

Deep groove ball bearing with seals

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Tootekood: 6202-RSH Kategooriad: , Bränd:

Kirjeldus

Dimensions

Bore diameter 15 mm
Outside diameter 35 mm
Width 11 mm

Performance

Basic dynamic load rating 8.06 kN
Basic static load rating 3.75 kN
Limiting speed 13 000 r/min
SKF performance class SKF Explorer

Properties

Filling slots Without
Number of rows 1
Locating feature, bearing outer ring Without
Bore type Cylindrical
Cage Sheet metal
Matched arrangement No
Radial internal clearance CN
Material, bearing Bearing steel
Coating Without
Sealing Seal on one side
Sealing type Contact
Lubricant None
Relubrication feature Without
Indicative carbon footprint for new product 0.16 kg CO2e
