TUGIRULL KR 22-PP ASKUBAL

Kirjeldus

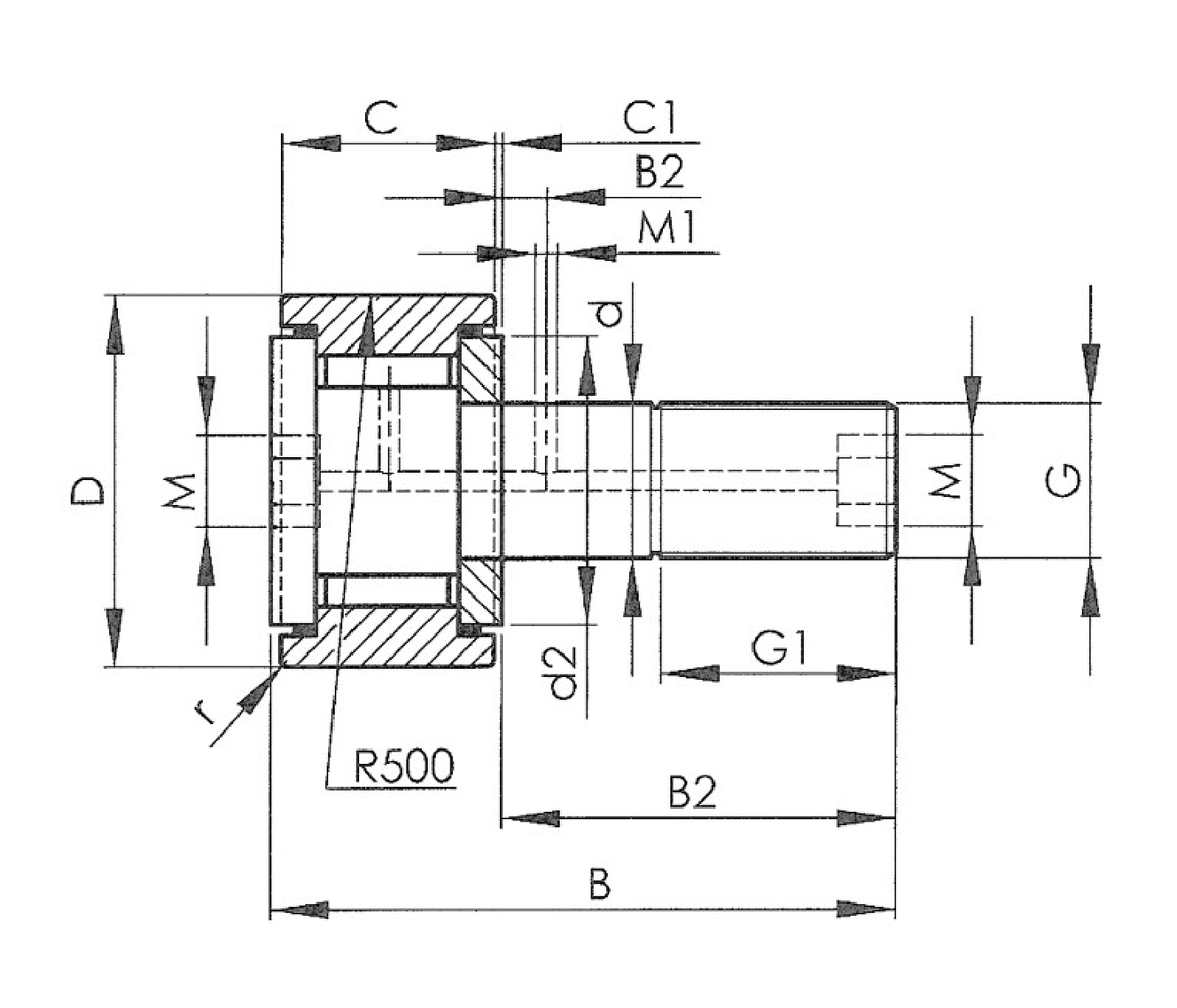

Measurement
D (mm): 22
d h7 (mm): 10
C max. (mm): 12
r min. (mm): 0,3
B (mm): 36
B1 (mm): 23
B2 (mm): –
G (mm): M10x1
G1 (mm): 12
M (mm): 5*
M1 (mm): –
C1 (mm): 0,6
d2 (mm): 17
Clamping torque MA (Nm): 15
Load ratings static C0 (kN): 5,36
Load ratings dynamic C (kN): 3,84
Load ratings as roller static C0 (kN): 4,29
Load ratings as roller dynamic C (kN): 3,03
Limiting speed grease nD (min-1): 8.000
Weight (kg): 0,044
Product: Cam follower stud type
Product series: KR
Design: Standard
Bearing: With cage
Mounting: With hexagonal hole
Sealing: With seals
Coat design: Crowned coat
