TUGIRULL KR 19-PP ASKUBAL

Kirjeldus

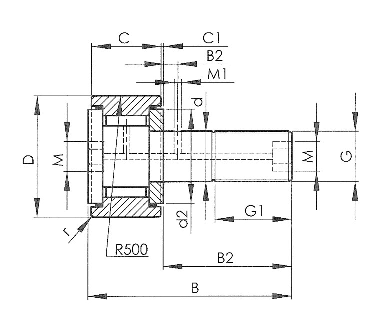

Measurement
D (mm): 19
d h7 (mm): 8
C max. (mm): 11
r min. (mm): 0,6
B (mm): 32
B1 (mm): 20
B2 (mm): –
G (mm): M8x1,25
G1 (mm): 10
M (mm): 4*
M1 (mm): –
C1 (mm): 0,6
d2 (mm): 14
Clamping torque MA (Nm): 8
Load ratings static C0 (kN): 3,8
Load ratings dynamic C (kN): 3,06
Load ratings as roller static C0 (kN): 3,23
Load ratings as roller dynamic C (kN): 2,54
Limiting speed grease nD (min-1): 11.000
Weight (kg): 0,028
Product: Cam follower stud type
Product series: KR
Design: Standard
Bearing: With cage
Mounting: With hexagonal hole
Sealing: With seals
Coat design: Crowned coat
