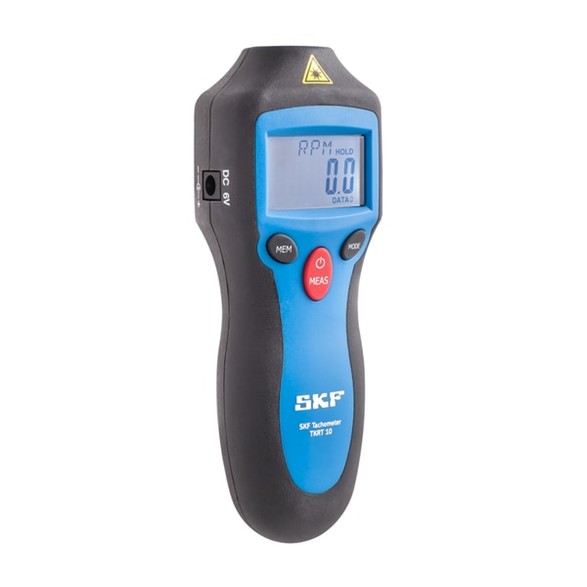

TKRT 10
Digital tachometer

The SKF TKRT 10 is a fast and accurate tachometer utilizing laser or contact to measure rotational and linear speeds. Equipped with a laser and a range of contact adapters, it is a versatile instrument and suits many different applications.

  • Laser/contact measuring system
  • Wide speed measurement range
  • Multiple measurement modes
  • Large, back-lit LCD display
  • Angular range of ±45° for easy measuring
  • Up to 10 readings stored for reference
  • Includes basic set of contact adaptors
  • Supplied in a handy toolcase for easy storage
Tootekood: TKRT 10 Kategooria: Bränd:

Kirjeldus

Dimensions

Instrument dimensions 160 x 60 x 42 mm
Case dimensions (l x h x w) 260 x 85 x 180 mm

Performance

Optical measurement rotational speed (range) 3  –  99999 r/min
Contact measurement rotational speed (range) 2  –  20000 r/min
Contact measurement linear speed (range) [object Object] m/min
Contact measurement distance (range) 50  –  500 mm

Properties

Recommended applications Used to determine the speed of motors or shafts, as well as for measuring the speed and length of moving surfaces such as V-belts and conveyor belts.
Display 5 digit LCD display, backlit
Measurement types Actual, Minimum, Maximum, Average, Total
Optical measurement method Built in laser
Optical measurement modes r/min, Hz
Optical measurement accuracy (+/-) 0.05 %
Angle of operation (max) 45 °
Contact measurement rotational speed modes r/min, Hz
Contact measurement accuracy (+/-) 1 %
Contact accessories
Contact adaptor
Conical tip, conical recess and contact wheel, all included
Linear measurement modes (with contact adaptor) m/min, m/s, yards/min, yard/s, feet/min, feet/s, inch/min, inch/s
Contact measurement accuracy (+/-) 1 %
Distance measurement modes (with contact adaptor) metres, feet, yards
Memory 10 readings MB
Laser type Visible red line laser
Laser wavelength 650 nm
Laser power max 1 mW
Auto switch off After 15 seconds
Tripod connector Yes, (1/4-20 UNC)
Housing material ABS plastics
Colour
Blue
Dark Grey
Battery 1x 9V Alkaline type IEC 6F22
Battery life 12 h
Power adapter 6V DC port, power adapter not included
Instrument weight 160 g
Degree of protection (IP) IP40
Operating temperature range 0  –  50 °C
Recommended storage temperature -10  –  50 °C
Relative humidity 10 to 90%, non-condensing
Content
1 x Tachometer TKRT 10
1x Contact adaptor
1x Conical tip
1x conical recess
1x contact wheel
1 x 9V battery
1 x Set of reflective tape
​​​​​​​1 x Instructions for use MP5425
1x Carrying case size A
