RULL-LAAGER CARB C 5918-CS5V/C3 SKF

Kirjeldus

C 5918-CS5V/C3

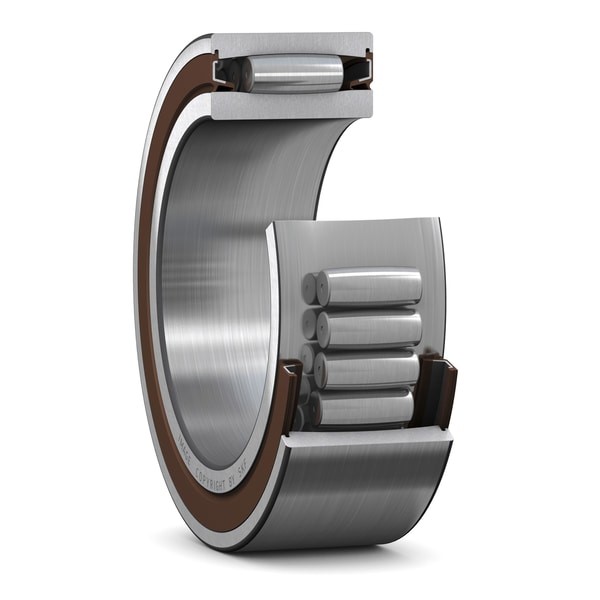

Full complement CARB toroidal roller bearing with integral sealing
CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This bearing has a lower speed rating and is sealed to minimize the need for lubrication and extend service life.
Accommodate misalignment and axial displacement within the bearing
High radial load carrying capacity
Provide frictionless axial movement
Long bearing system life
Sealed for increased reliability

DIMENSIONS
Bore diameter 90mm
Outside diameter 125mm
Width 46mm

PERFORMANCE
Basic dynamic load rating 224kN
Basic static load rating 400kN
Limiting speed 110r/min
SKF performance class SKF Explorer

PROPERTIES
Number of rows 1
Locating feature, bearing outer ring Without
Bore type Cylindrical
Cage Without
Radial internal clearance C3
Tolerance class Normal
Sealing Seal on one side
Sealing type Contact
Lubricant None
Relubrication feature Without
Indicative carbon footprint for new product 6.1kg CO2e
