TKBT 10

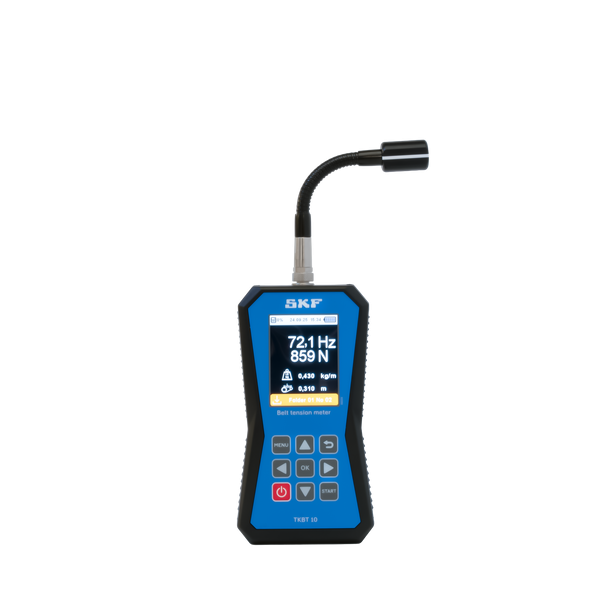

Belt tension meter

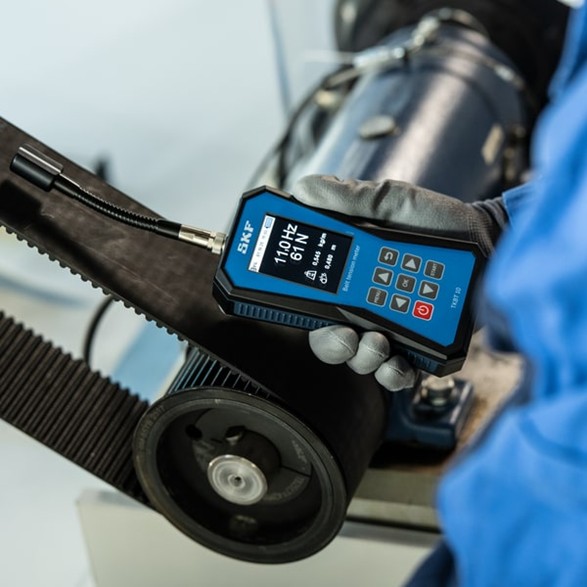

The belt tension meter is a portable and user-friendly instrument designed to ensure optimal belt performance and longevity. It enables precise measurement of belt natural frequency and belt tension in various belt types, including V-belts, toothed belts, ribbed belts, drive belts, and conveyor belts. With its flexible neck sensor and optional accessories, the instrument is ideal for use in belt maintenance tasks.

Accurate measurement of belt tension in Hertz (Hz) and trum force in Newton (N) or pound-force (lbf)
Flexible sensor neck allows access to confined spaces
Optional accessories for enhanced usability (e.g., mallet, tripod, long gooseneck sensor)
Stores up to 750 measurements across 15 folders
Easy-to-use interface with multilingual support
Zero-point calibration for improved accuracy

Tootekood: TKBT 10 Kategooria: Hooldustooted Bränd: SKF

Kirjeldus

Kirjeldus

Dimensions

Instrument dimensions	150 x 80 x 38 mm
Probe lenghts	145 mm (Short probe), ~900 mm (Long probe – Due to elastic coil, it can elongate more)
Case dimensions (l x h x w)	530 x 85 x 180 mm

Properties

Recommended applications	Conveyor systems, HVAC systems, Textile machinery, Agricultural equipment
Series	Belt tensioning
Measurement method	Measuring the natural frequency vibration of belt
Sensors	Optical measurement sensor
Measurement frequency	10 – 900 Hz
Resolution	<100 Hz: 0.1 Hz / >100 Hz: 1 Hz
Measuring error (percent)	1 %
Memory	750 memory positions (15 folders, 50 measurements each)MB
Battery	3 x 1.5 V AA (LR 6) batteries
Battery life	24 h
Software features	Multiple languages: English, German, Spanish, French, Italian, Dutch Zero-point calibration supported
Special features	Self calibration Optical sensor Measurement of both tension and vibration 750 memory positions
Alarms	None
Display	High contrast graphic Color LCD display, 55 x 43 mm
Auto switch off	Yes
Instrument weight	300 g
Housing material	Plastic
Colour	Blue Dark Grey
Degree of protection (IP)	IP 50
Operating temperature range	0 – 50 °C
Recommended storage temperature	-20 – 65 °C
Relative humidity	10 – 95% RH, non-condensing
Content	1x Belt tension meter 1x Short probe( TKBT 10-PS) 3x AA Batteries 1x QR code card 1x Carrying case (size X)
