PUKKLAAGER SKF FOOD LINE d-30MM KOMPOSIIT KORPUS + SS LAAGER P2BTC 30M-TPSS SKF

Kirjeldus

P2BTC 30M-TPSS

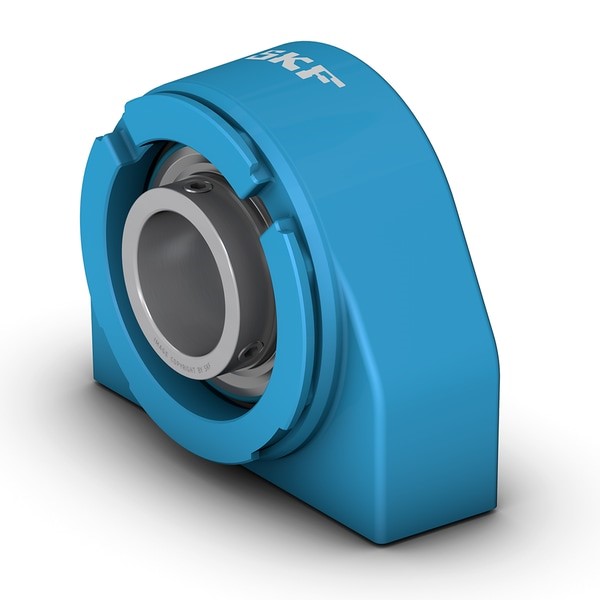

Short base pillow block ball bearing unit with extended inner ring and set screw locking, composite
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Excellent corrosion resistance
Lightweight
Recyclable

DIMENSIONS
Shaft diameter 30 mm
Centre height (pillow block) 42.9 mm
Housing overall width 30 mm
Centre distance between bolt holes 76 mm
Bearing width, total 38.1 mm

PERFORMANCE
Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 3800 r/min
Note Limiting speed with shaft tolerance h6

PROPERTIES
Housing type Pillow block
Number of bolt holes for fasteners 2
Fastening bolt hole type Threaded
Retaining feature, inner ring Set screws
Bore type Cylindrical
Rubber seating ring Without
Material, housing Composite for the SKF Food Line
Material, bearing Stainless steel
Coating Without
Sealing, bearing Seal and flinger on both sides
Sealing type Contact, gutter
Sealing, unit Optional end cover
Lubricant Grease
Relubrication hole Without
Grease fitting Without
