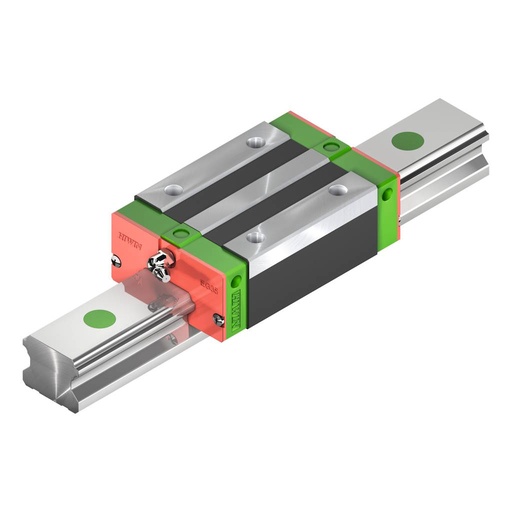

LINEAARJUHIK EGH 25 CA-Z0H HIWIN

Kirjeldus

Andmeleht: EGH25CAZ0H _ EGH_QEH _ Series EG_QE _ Ball guides _ Blocks _ Linear guideways _ Products _ HIWIN

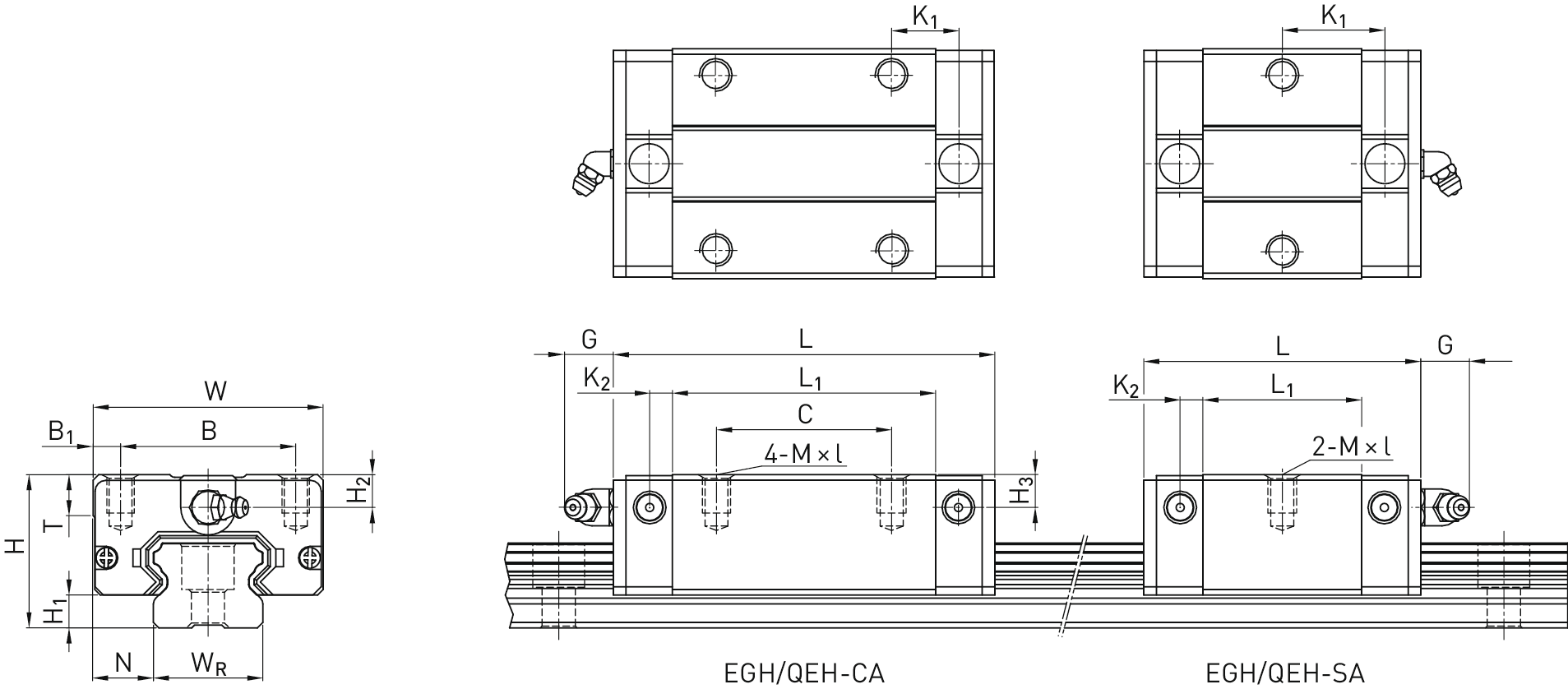

Dimensions
H Total height 33 mm
H1 7 mm
N 12,5 mm
W Block width 48 mm
B 35 mm
B1 6,5 mm
C 35 mm
L1 59 mm
L Block length 82,6 mm
K1 16,15 mm
K2 4,55 mm
G 12 mm
M M6
l 9 mm
T 8 mm
H2 8 mm
H3 8 mm
Mass 0,41 kg

Load ratings and torques
Cdyn Dynamic load rating 16.270 N
C0 Static load rating 32.400 N
M0X Static moment 380 Nm
M0Y Static moment 320 Nm
M0Z Static moment 320 Nm
