HOOLDEVABA LIIGENDLAAGER d-8MM GE 8 C SKF

Kirjeldus

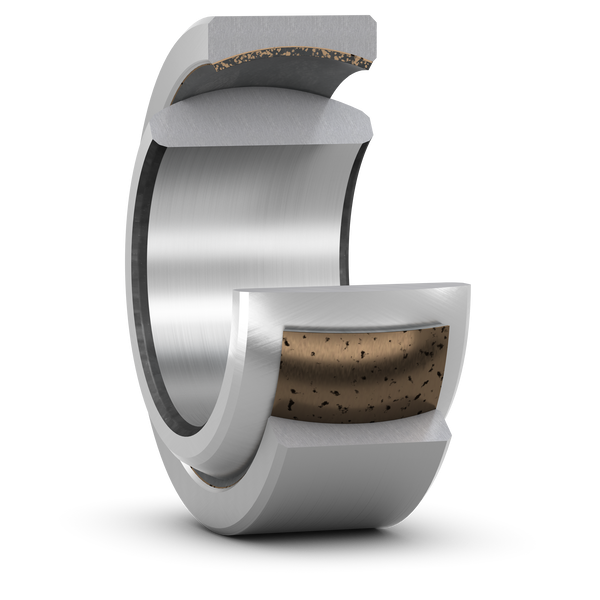

GE 8 C
Radial spherical plain bearing, maintenance-free, metric sizes
These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.
Designed for radial and combined radial and axial loads
Long service life and maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
High operating temperatures
High sliding velocities and small operating clearances

DIMENSIONS
Bore diameter 8mm
Outside diameter 16mm
Width, inner ring 8mm
Width, outer ring 5mm

PERFORMANCE
Basic dynamic load rating 5.85kN
Basic static load rating 14.6kN

PROPERTIES
Sliding contact surface combination Steel/PTFE sintered bronze
Material, inner ring Bearing steel
Material, outer ring Steel
Maintenance Maintenance-free
Sealing Without
Relubrication feature Without
