LAHTINE ÜHEREALINE KUULLAAGER KITSAS SEERIA KF 065CP0 KAYDON/SKF

Kirjeldus

KDN.KF065CP0

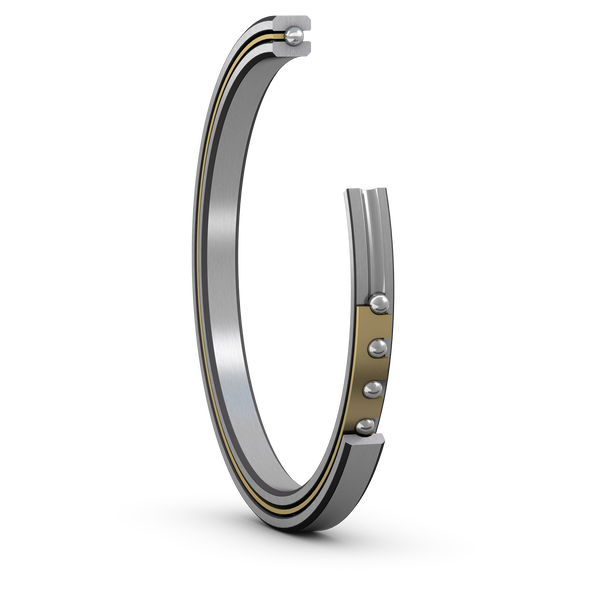

Reali-Slim thin section radial contact ball bearing
Radial contact ball bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are available with metric and inch boundary dimensions. Depending on the design and series the bearings can be provided with chemical and corrosion resistance.
Accommodate radial and some axial loads in both directions
Thin cross section
Lightweight
Low friction
High stiffness
High running accuracy

DIMENSIONS
Bore diameter 165.1mm
Outside diameter 203.2mm
Width 19.05mm
Radial cross section 19.05mm
Contact angle 0°

PERFORMANCE
Dynamic load rating, Kaydon, radial direction 19.8kN

PROPERTIES
Rolling bearing type Radial contact ball bearing (type C)
Contact type Normal contact (two-point contact)
Number of rows 1
Cage Brass or non-metallic composite
Matched arrangement No
Material, bearing Bearing steel
Coating Without
Sealing Without
Lubricant None
Relubrication feature Without
Unit system Inch
Indicative product carbon footprint to manufacture 4.74kg CO2e
