LAAGRIKORPUS UMBNE FNL 511 A SKF

Kirjeldus

FNL511 A

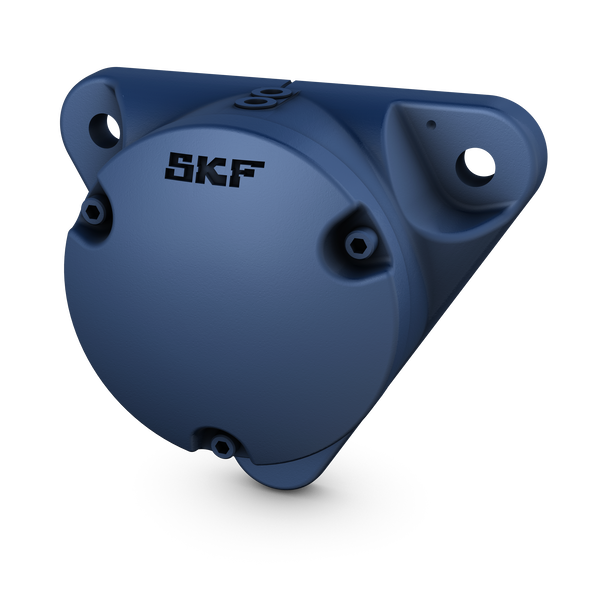

FNL cast flanged, non-split housing
FNL cast flanged, non-split housings are well-proven machine parts that provide simple and reliable housing in applications without horizontal frames. They enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance. FNL housings are supplied with a cover either for shaft ends (suffix A) or for through shafts (suffix B). Smaller sizes (up to and including size 13) have a triangular flange, larger sizes have a square flange.
Well-proven
Less need for maintenance

DIMENSIONS
Diameter of bearing seat 100 mm
Pitch diameter of bolt holes of round and triangle flange type housing 170 mm
Attachment bolt diameter 12 mm

PROPERTIES
Housing type Flanged
Housing configuration One-piece
Mounting arrangement Shaft end
Number of bolt holes for fasteners 3
Material, housing Cast iron
Bearing housing seal type Lip seal
Housing lubrication feature/possibility Grease

COMPONENT
Double-lip seal TFL 511
