LAAGRIKORPUS SNT 508-607 TIMKEN

Kirjeldus

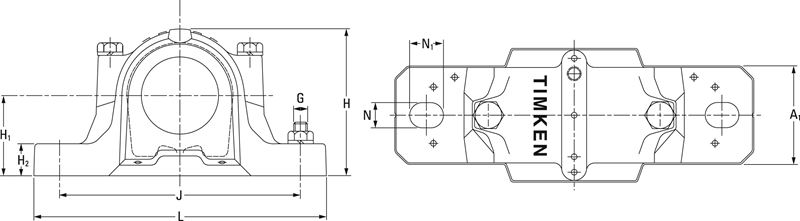

Dimensions (mm), Weight (kg)
• Weight (kg) 2.896000
• shaft height (H) 60
• fixing/bolt holes arrangement (J) 170
• lenght (L) 205
• height (H2) 108
• housing width (A) 60
• housing width total (U) 85
• fixing holes diameter (N) 15
• fixing hole lenght ( N1 ) 20
• fixing/bolt holes distance (J min) 165
• fixing/bolt holes distance (J max) 175
Specification
• Type of assortment split housing
• housing shape plummer block housing
• housing material cast iron
• number of fixing holes 2
• temperature standard
