70,13  (sis. KM)

24 laos (Laki 26)

Weight (kg) 7.665
Alternative item number SNHF513-611 SNL513-611 SNH513-611 SNU513-611 SNK513-611 SNG513-611 SNI513-611
Inner diameter (mm) 60.00
Material Cast iron
Mounting bolt spacing (mm) 230.00
Height to center of the shaft (mm) 80.00

Tootekood: SNHF513-611 Kategooriad: ,

Kirjeldus

SNK513-611+TSNG513+SR120X10.CRF-I

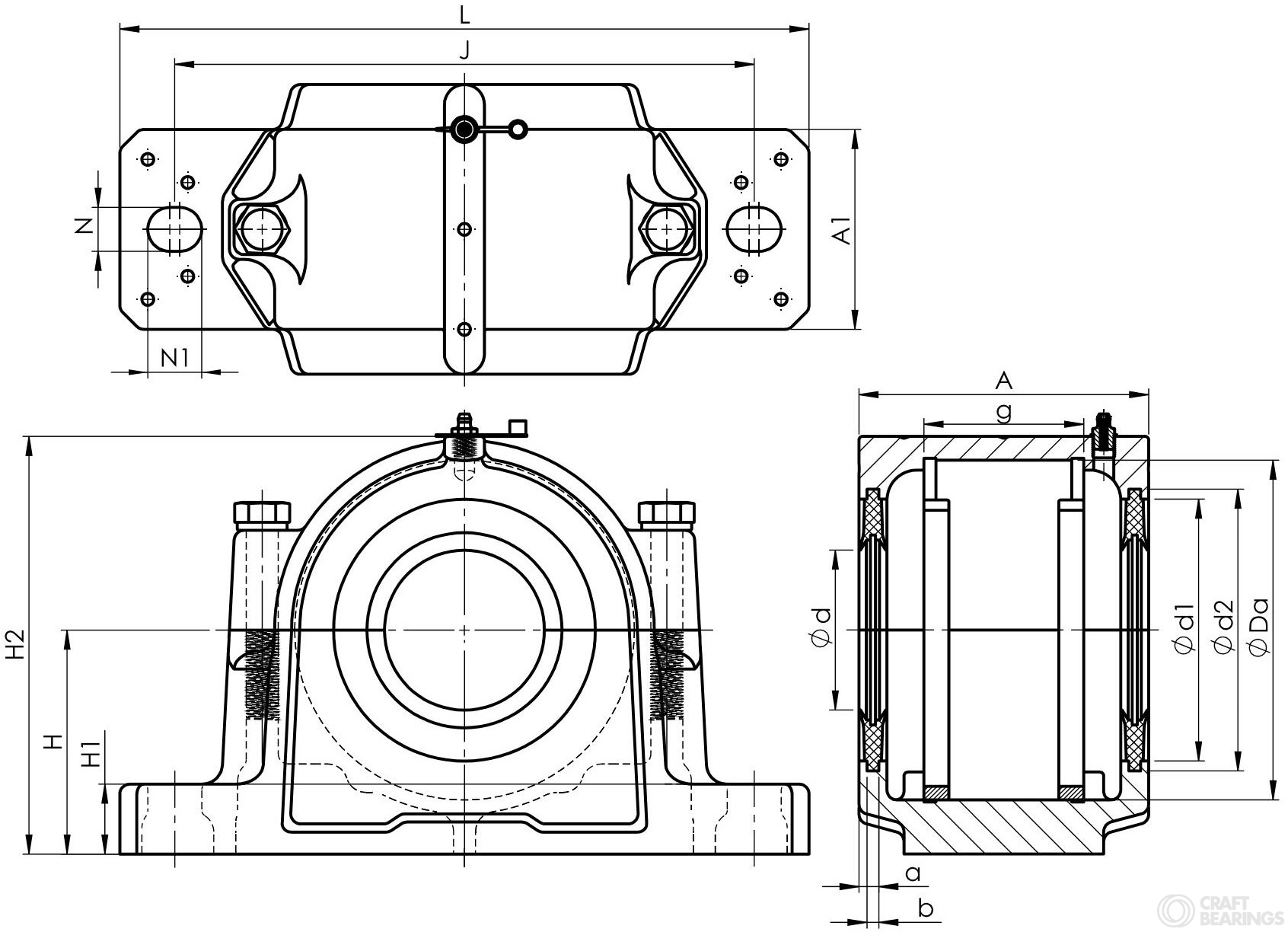

Split type plummer block housing SNK513-611
CRAFT bearings
SNL513-611+TSNG513+FRB10/120

Bore diameter, mm 120 mm
Outside diameter, mm 275 mm
Overall width, mm 110 mm
Group
SPLIT TYPE PLUMMER BLOCK HOUSINGS
Marking SNK513-611
Net Weight 7.665 Kg
PackageINDIVIDUAL
Bearing set TSNG…
Bearing set SR…
Precision class P0 DIN or Normal according to ISO and GOST; ABEC-1, RBEC-1, K, 4 according to ABMA.
Standards GB
Weight, kg 7,665
