KINNITUSHÜLSS 50MM VÕLLILE BK80 50X65

Kirjeldus

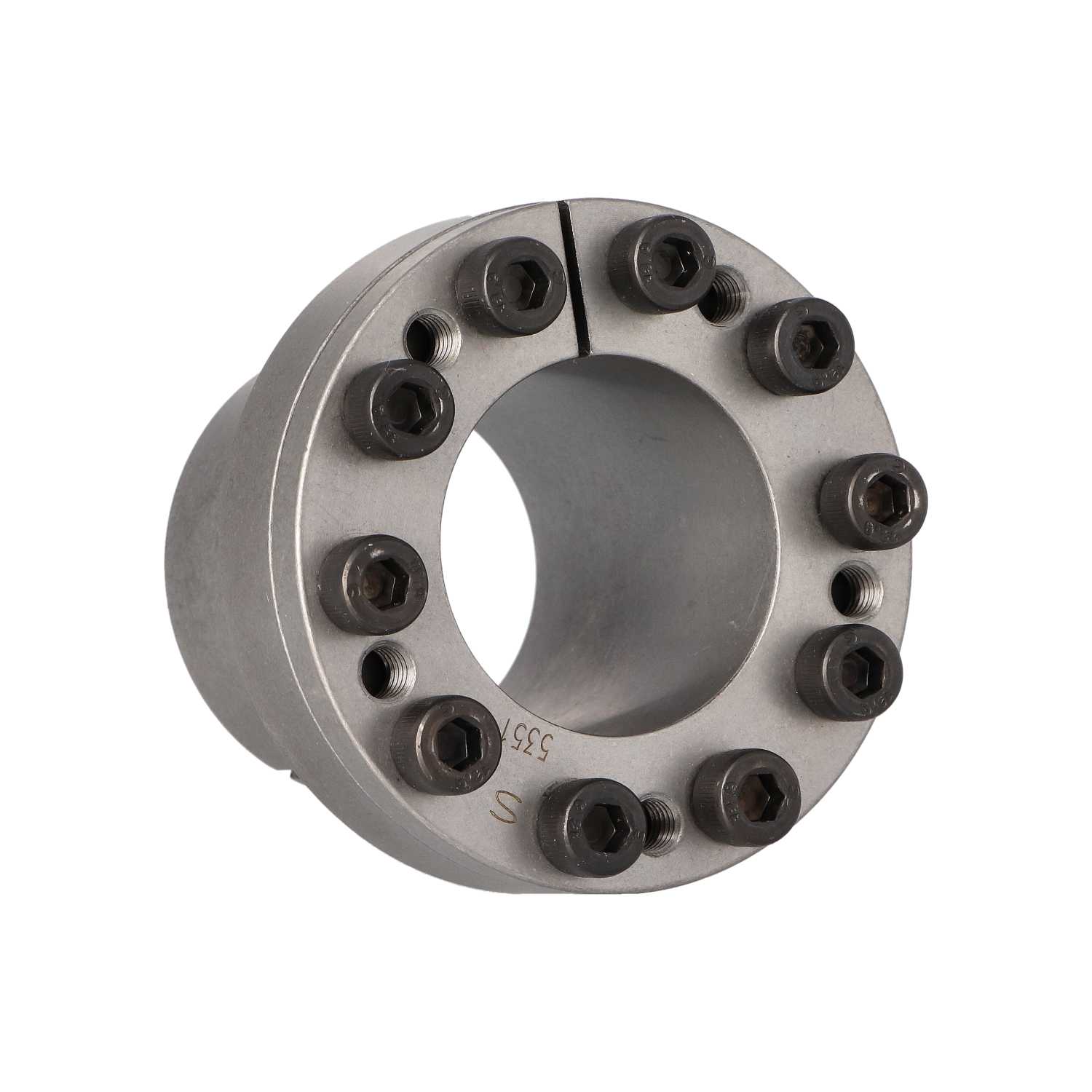

Clamping element, self-centering
dimensions 50 x 65 x 70
Weight 1.324 kg
clamping screw M8
feature no axial displacement when tightening the screws
H0 [mm] 62
H2 [mm] 78
H [mm] 45
material steel
mounting holes number 8
product feature self-centering
product feature sit-lock
screw tightening torque [Nm] 41
